Model Name

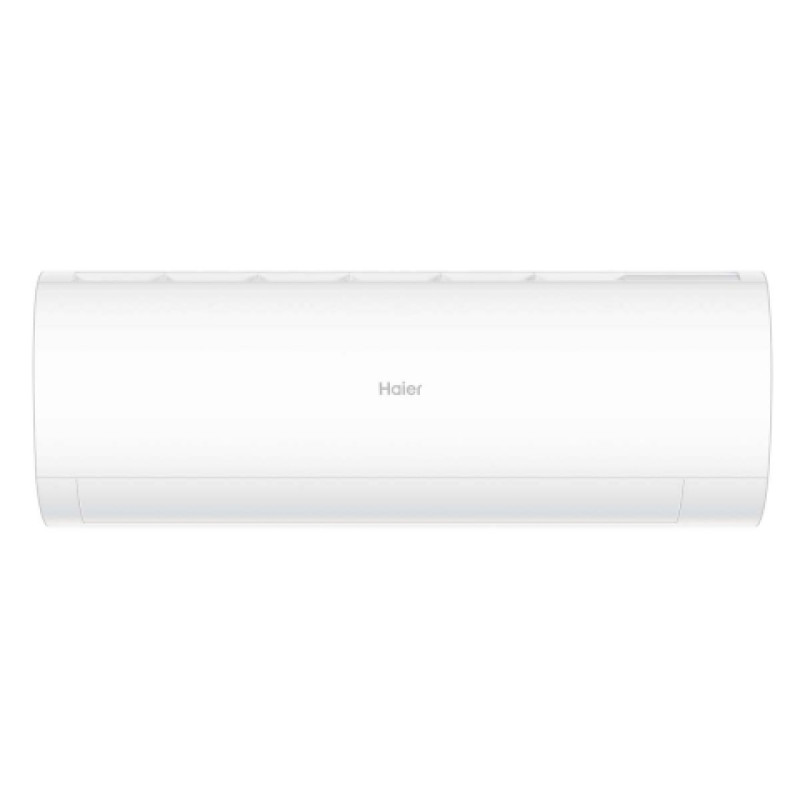

Indoor:  HSU-18TurboCool(FIX)(Pro)

Outdoor:  HSU-18K(FIX)(Pro)

Category:  Non Inverter

Series:  Non Inverter Pro

Capacity and Parameters

Type: Non Inverter

Ton Range (TR): 1.5 Ton

Capacity(BTU): 18000

Rated Cooling Capacity (W): 5275

Rated Heating Capacity (W): N/A

Rated Power Input Cooling (W): 1800

Rated Power Input Heating (W): N/A

Max. Power input Cooling (W): 2100

Max. Power input Heating (W): N/A

Energy Efficiency Ratio (EER): 2.93

Seasonal Energy Efficiency Ratio (SEER): N/A

Coefficient of Performance (COP): N/A

Rated Running Current (A) Cooling: 8.5

Rated Running Current (A) Heating: N/A

Max.Running Current (A) Cooling: 11.5

Max.Running Current (A) Heating: N/A

Power supply (Ph,V,Hz): 1/230/50HZ

Air Circulation (m3/h): 1000

Moisture Removal (10-3m3/h): N/A

Refrigerant Type: R32

Refrigerant Standard (Kg): 1.130

Refrigerant Pipe Liquid Side Diameter (mm): 6

Refrigerant Pipe Gas Side Diameter (mm): 12

Compressor Type: Rotary

Evaporator/Condenser: 7mm 2 Row Grooved Copper

Heat Exchangers: Golden Fin

Measurements

Indoor

Indoor Net dimension (mm) W/D/H:  975*220*318

Indoor Package dimension (mm) W/D/H:  1050*397*301

Indoor Net weight (kg):  12.5

Indoor Gross weight (kg):  14.0

Indoor Sound power level [dB(A)] Hi/Mid/Low:  47/43/40

Outdoor

Outdoor Net dimension (mm) W/D/H:  800*280*553

Outdoor Package dimension (mm) W/D/H:  908*405*625

Outdoor Net weight (kg):  37.0

Outdoor Gross weight (kg):  40.0

Outdoor Sound power level [dB(A)] Hi/Mid/Lo/So:  55

Air Flow Direction

Up & Down: Auto

Left & Right: Auto

User Functions

Dry Mode: Yes

Turbo Function: Yes

Auto Restart Function: Yes

Sleep Mode: Yes

Quiet Mode: Yes

Timer: Yes

Quick & Easy Installation: Yes

Child Lock: Yes
