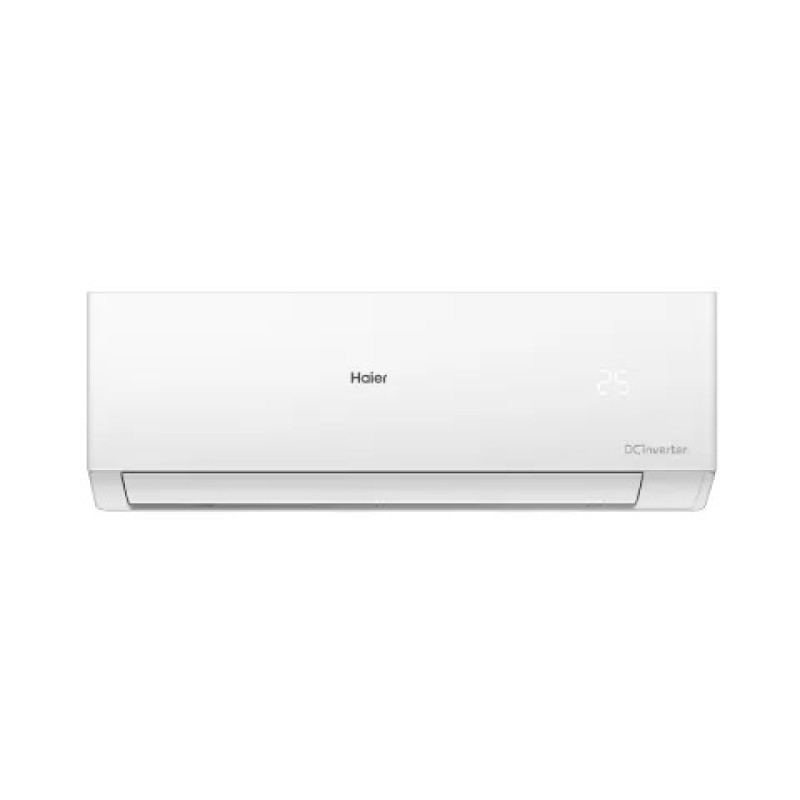

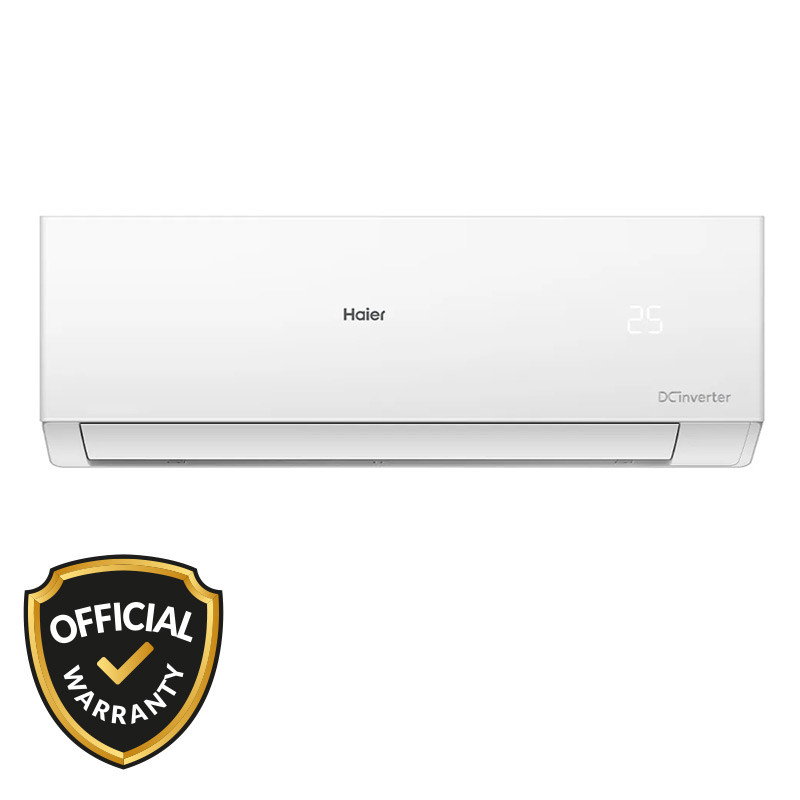

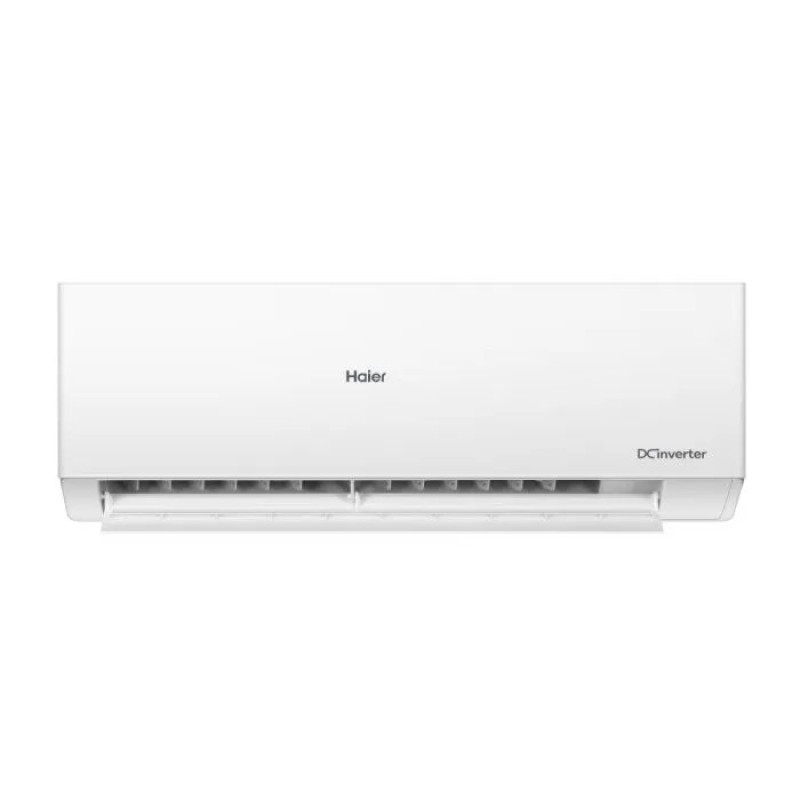

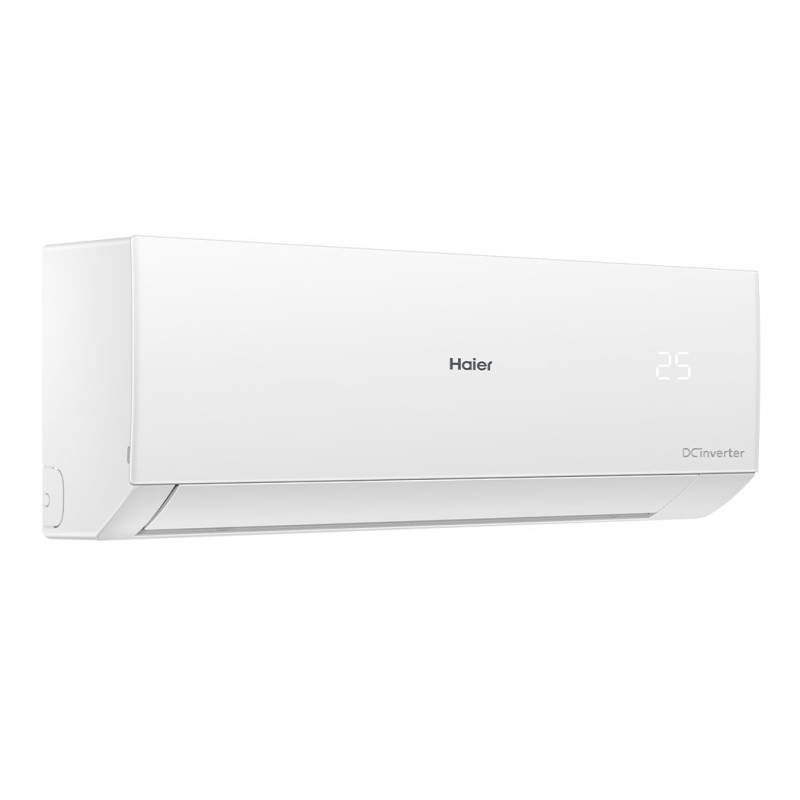

Model Name Indoor: HSU-18CleanCool (INV)(3DF)(QA) Outdoor: HSU-18K(INV)(Pro):ODU Category: Inverter Series: Inverter Capacity and Parameters Type: Inverter Ton Range (TR): 1.5 Ton Capacity(BTU): 18000 Rated Cooling Capacity (W): 5570 Rated Heating Capacity (W): N/A Rated Power Input Cooling (W): 1800 Rated Power Input Heating (W): N/A Max. Power input Cooling (W): 1860 Max. Power input Heating (W): N/A Energy Efficiency Ratio (EER): 2.93 Seasonal Energy Efficiency Ratio (SEER): 3.80 Coefficient of Performance (COP): N/A Rated Running Current (A) Cooling: 8.0 Rated Running Current (A) Heating: N/A Max.Running Current (A) Cooling: 9.0 Max.Running Current (A) Heating: N/A Power supply (Ph,V,Hz): 1/230/50HZ Air Circulation (m3/h): 1100 Moisture Removal (10-3m3/h): N/A Refrigerant Type: R32 Refrigerant Standard (Kg): 0.980 Refrigerant Pipe Liquid Side Diameter (mm): 6 Refrigerant Pipe Gas Side Diameter (mm): 12 Compressor Type: Rotary Evaporator/Condenser: 100% 7mm Grooved Copper Heat Exchangers: Golden Fin Measurements Indoor Indoor Net dimension (mm) W/D/H: 975*220*318 Indoor Package dimension (mm) W/D/H: 1050*397*301 Indoor Net weight (kg): 12.5 Indoor Gross weight (kg): 14 Indoor Sound power level [dB(A)] Hi/Mid/Low: 47/43/40 Outdoor Outdoor Net dimension (mm) W/D/H: 800*280*553 Outdoor Package dimension (mm) W/D/H: 908*405*625 Outdoor Net weight (kg): 32.5 Outdoor Gross weight (kg): 35.5 Outdoor Sound power level [dB(A)] Hi/Mid/Lo/So: 55 Air Flow Direction Up & Down: Auto Left & Right: Auto User Functions Self Clean: Yes Energy Savings: Yes (Up to 65%) ECO Mode: Yes UVC Pro Technology: No Wifi: No Dry Mode: Yes Turbo Function: Yes Auto Restart Function: Yes Sleep Mode: Yes Low Noise: Yes Timer: Yes Quick & Easy Installation: Yes Child Lock: Yes

Warranty Compressor (Yrs): 12 Spare Parts and Components (Yrs): 5 Service (Yrs): 2
