Model Name

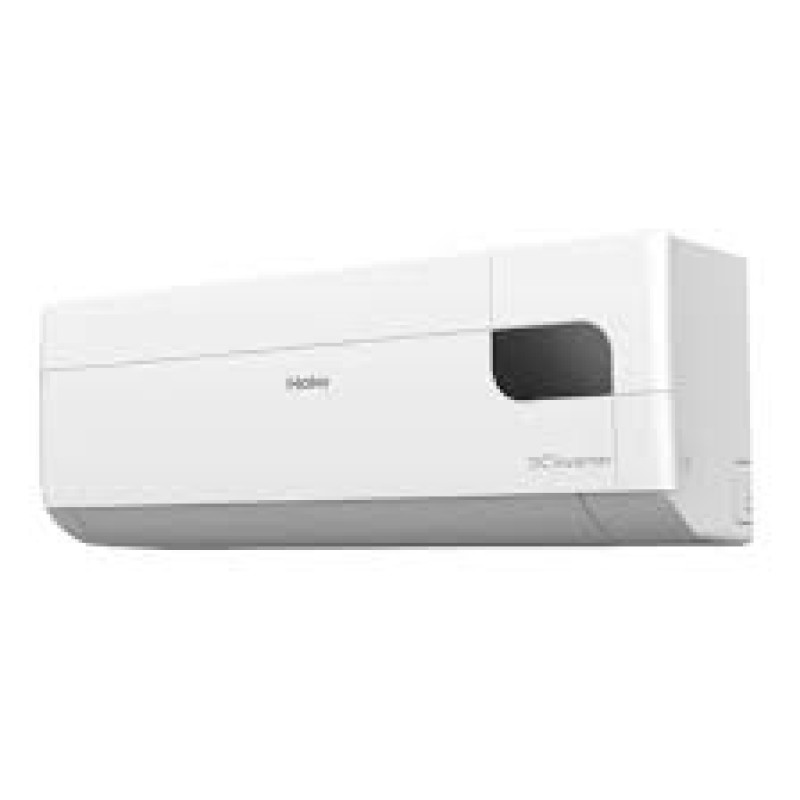

Indoor:  HSU-24EnergyCool(INV)(Pro)

Outdoor:  HSU-24K(INV)(Pro):ODU

Category:  Inverter

Series:  Inverter Pro

Capacity and Parameters

Type: Inverter

Ton Range (TR): 2.0 Ton

Capacity(BTU): 24000

Rated Cooling Capacity (W): 7000

Rated Heating Capacity (W): N/A

Rated Power Input Cooling (W): 2320

Rated Power Input Heating (W): N/A

Max. Power input Cooling (W): 2480

Max. Power input Heating (W): N/A

Energy Efficiency Ratio (EER): 2.93

Seasonal Energy Efficiency Ratio (SEER): 3.80

Coefficient of Performance (COP): N/A

Rated Running Current (A) Cooling: 10.5

Rated Running Current (A) Heating: N/A

Max.Running Current (A) Cooling: 11.0

Max.Running Current (A) Heating: N/A

Power supply (Ph,V,Hz): 1/230/50HZ

Air Circulation (m3/h): 1200

Moisture Removal (10-3m3/h): N/A

Refrigerant Type: R32

Refrigerant Standard (Kg): 1.100

Refrigerant Pipe Liquid Side Diameter (mm): 6

Refrigerant Pipe Gas Side Diameter (mm): 12

Compressor Type: Rotary

Evaporator/Condenser: 100% 7mm Grooved Copper

Heat Exchangers: Golden Fin

Measurements

Indoor

Indoor Net dimension (mm) W/D/H:  1105*240*345

Indoor Package dimension (mm) W/D/H:  1185*428*331

Indoor Net weight (kg):  15.0

Indoor Gross weight (kg):  13.5

Indoor Sound power level [dB(A)] Hi/Mid/Low:  47/44/39

Outdoor

Outdoor Net dimension (mm) W/D/H:  800*280*553

Outdoor Package dimension (mm) W/D/H:  908*405*625

Outdoor Net weight (kg):  33.5

Outdoor Gross weight (kg):  36.5

Outdoor Sound power level [dB(A)] Hi/Mid/Lo/So:  55

Air Flow Direction

Up & Down: Auto

Left & Right: Auto

User Functions

Self Clean: Yes

Energy Savings: Yes (Up to 65%)

ECO Mode: Yes

UVC Pro Technology: No

Wifi: No

Dry Mode: Yes

Turbo Function: Yes

Auto Restart Function: Yes

Sleep Mode: Yes

Low Noise: Yes

Timer: Yes

Quick & Easy Installation: Yes

Child Lock: Yes
